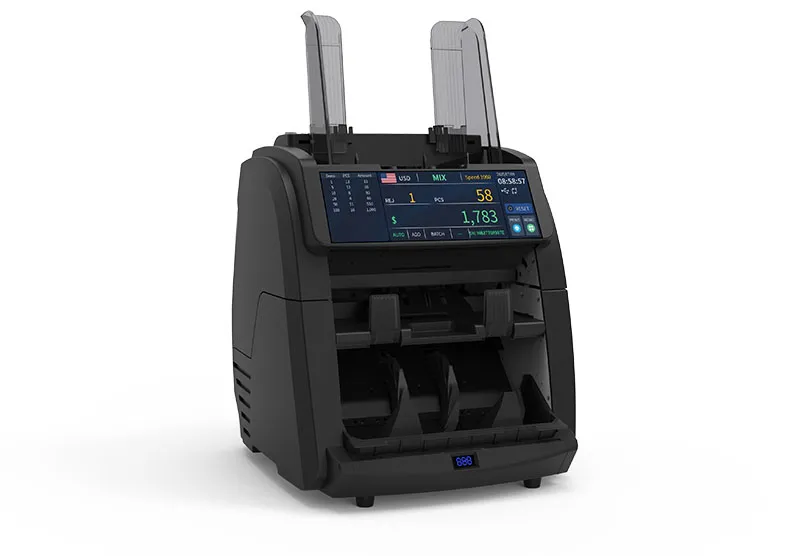

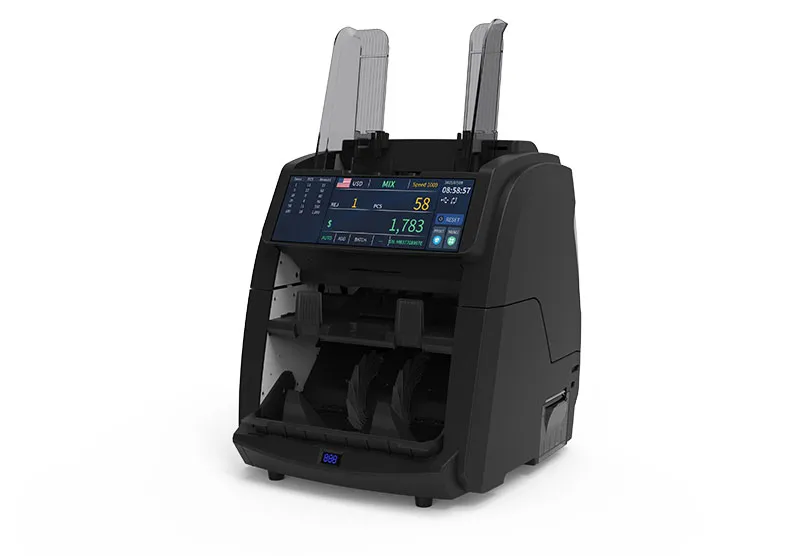

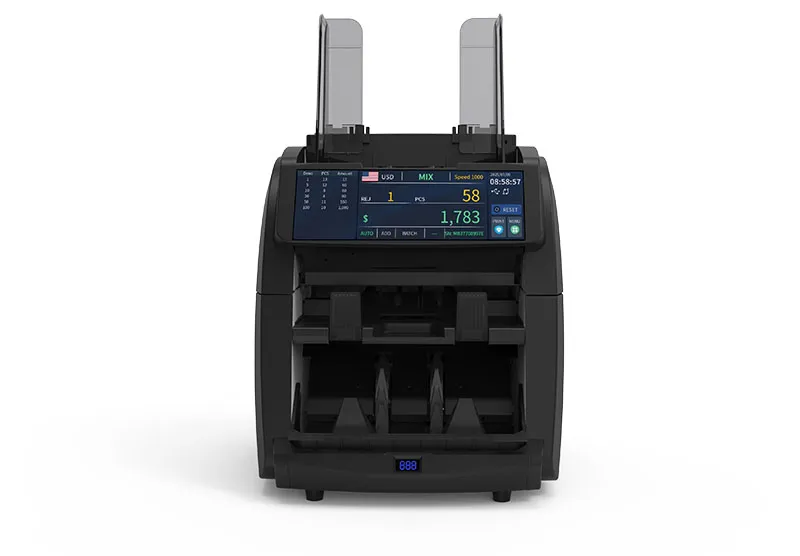

The HK6070 MAX02 is a 1+1 pockets sorter, equipped with an advanced full touch screen for an intuitive user interface and easy operation. It supports multiple counting functions to meet the needs of different customers and make cash management more efficient. It is also equipped with a built-in thermal printer to print and generate counting receipts instantly, further improving efficiency. The system uses a carefully designed noise-reducing dust cover to ensure pollution-free operation in high-volume environments. Combining bank-level verification with one-click operation, this solution transforms complex currency processing into a safe and efficient workflow for financial institutions and cash centers that require extremely high precision.
The 7.8" HD full touch screen has an excellent touch feel and provides an intuitive user interface for easy operation and configuration.
Support Different Sorting Functions: Denomination, Face, Orientation, Issue version, Basic fitness of holes, damage, dog-ear, stains, etc., to meet different needs of customers.
Accurate counting and sorting, making cash management more efficient.
Dust-cover Design: excellent noise and dust resistance, creating a safe and comfortable currency counting environment.
Counterfeit Detection: | 2CIS, MG, IR, UV, MT, Serial Number |
Counting Speed: | 800 / 1000 / 1200 notes / min |
Hopper Capacity: | ≤ 500 notes, expandable to 1000 ~ 1200 notes |
Stacker Capacity: | ≤ 200 notes |
Reject Pocket Capacity: | ≤ 100 notes |
Banknote Size: | 60*85*0.08 ~ 100*190*0.12 MM |
Device Dimensions: | 285*285*335 MM |
Device N.Weight: | 12 KGS |
Packing Details: | 380*375*410 MM / 14 KGS |
Power Supply: | AC100 ~ 240V ±10%, 50/60 Hz |
Power Consumption: | ≤ 100 W |
Display: | 7.8-inch Full Touch Screen |
Interface (Port): | USB / LAN / External Display / 2*RS-232 (External Printer) |
