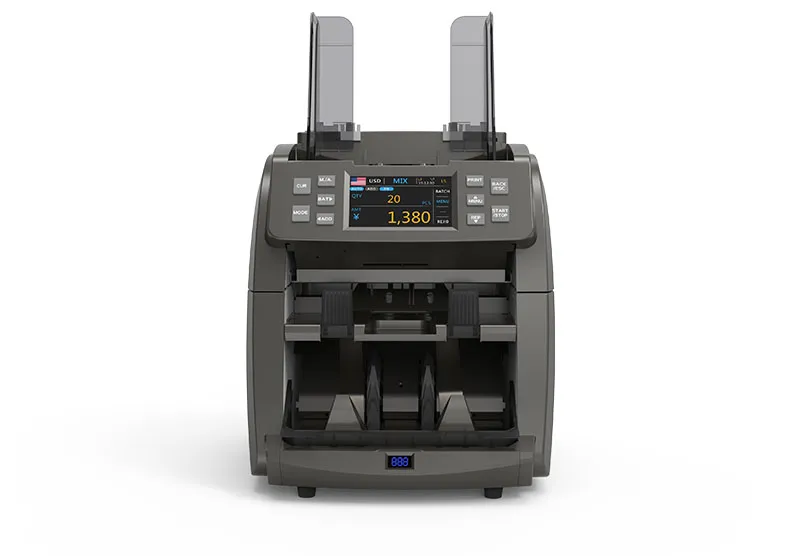

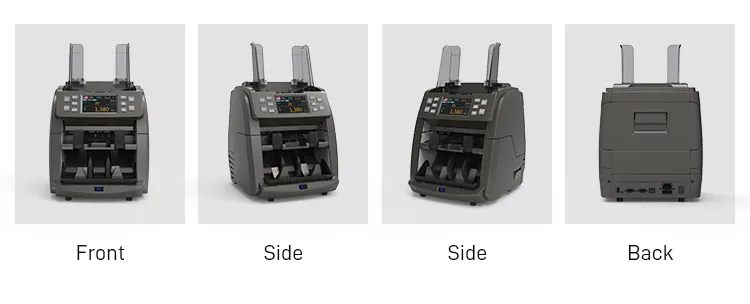

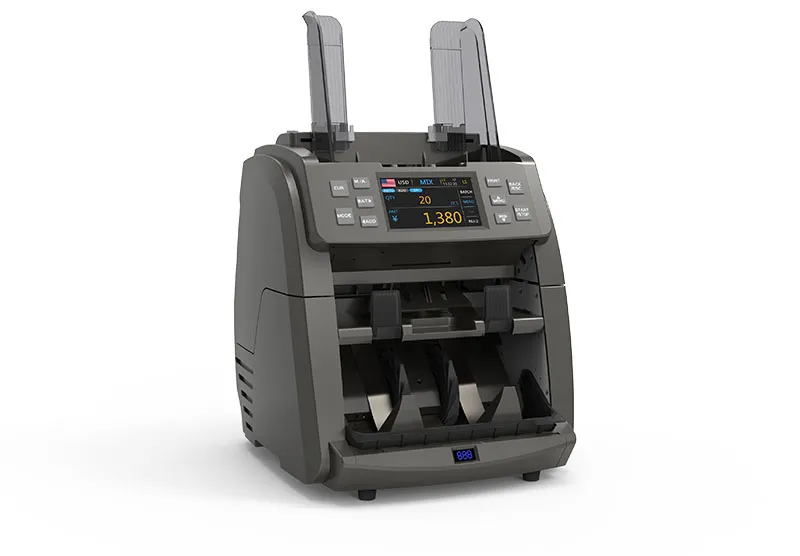

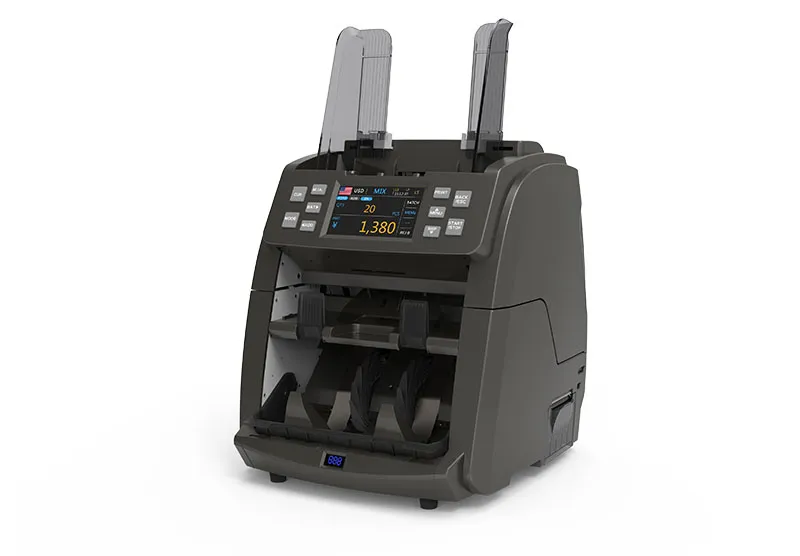

HK6070-PRO02, the 1+1 pockets sorting machine is an upgrade of HK6070-PRO01. Based on the original functions of HK6070-PRO01, this machine has a built-in thermal printer, which can print the detailed records of banknote counting in real time during the counting process and generate transaction vouchers on demand, bringing the efficiency of currency processing to a new level.
Multi-Currency Counting Mode
The HK6070-PRO02 excels in multi-currency mixed counting, processing bills from diverse currencies in a single batch without pre-sorting. It handles over 65 currencies worldwide, with full support for custom currency configurations.
Automatic Currency Recognition Mode
Automatic recognition swiftly detects each bill's currency type mid-process. The HK6070-PRO02 ensures top-tier counterfeit screening and accuracy.
Banknote Sorting & Fitness Grading
Comprehensive sorting includes denomination (value), face, orientation, and version categorization. The HK6070-PRO02 offers flexible fitness grading to suit various needs:
ATM-grade (ATM) selects bills at 70% newness or higher for ATM deposits.
FIT-grade (FIT) keeps bills at 40% newness or higher for everyday use.
FIT + OLD (F+O) isolates bills below 40% newness for removal or special handling.
Operation Interface & Display
A vibrant 4.3" HD full-color touch screen delivers real-time insights into counts, sorts, and alerts. PC External Display compatibility allows direct export of detailed records for storage and review.
Banknote Transport Structure & Maintenance
Built with a robust dust-cover design, the HK6070-PRO02 resists dust for reliable performance in busy environments. The wide-opening transport path simplifies cleaning and clears jams effortlessly.
Printing Functions: Print counting and sorting reports instantly via the built-in printer or an external thermal printer. Select from two formats: including serial numbers or serial-number-free for flexibility.
User Account Management: Operators can set up personal accounts on the device. Printed receipts show the active user's name, perfect for banks where multiple tellers share equipment and need clear accountability.
Networking & Data Management: Connect via network to upload count data effortlessly, or link to a PC with Ethernet or Type-C cable for live tracking via PC External Display software. Easily collect currency data for new currency development and false alarm data analysis.
Serial Number Blacklist Function: Detected fakes trigger automatic serial number logging to the blacklist. Review, compile, and manage these records efficiently to boost security and oversight.
Counterfeit Detection: | 2CIS, MG, IR, UV, MT, Serial Number |
Counting Speed: | 800 / 1000 / 1200 notes / min |
Hopper Capacity: | ≤ 500 notes, expandable to 1000 ~ 1200 notes |
Stacker Capacity: | ≤ 200 notes |
Reject Pocket Capacity: | ≤ 100 notes |
Banknote Size: | 60*85*0.08 ~ 100*190*0.12 MM |
Device Dimensions: | 285*285*335 MM |
Device N.Weight: | 12 KGS |
Packing Details: | 380*375*410 MM / 14 KGS |
Power Supply: | AC100 ~ 240V ±10%, 50/60 Hz |
Power Consumption: | ≤ 100 W |
Display: | 4.3-inch TFT Touch Screen |

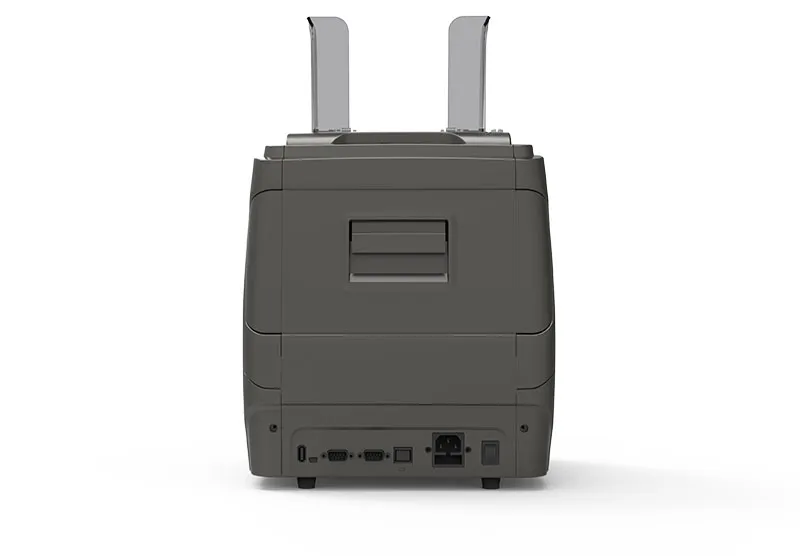

Interface (Port): | USB / LAN / External Display / 2*RS-232 (External Printer) |
Regional Bank Headquarters & Cash Centers
Central Banks & Currency Issuing Authorities
Cross-border Financial Outlets & Offshore Financial Centers
Large Commercial Cash Vaults & CIT Companies
Multinational Group Finance & Treasury Centers
International Airport Duty Free & Airport Finance Centers
Foreign Exchange & Cross-border Remittance Companies
Government Treasury, Tax & Judicial Cash Departments
International Exhibitions, Sports & Events Finance, etc.
