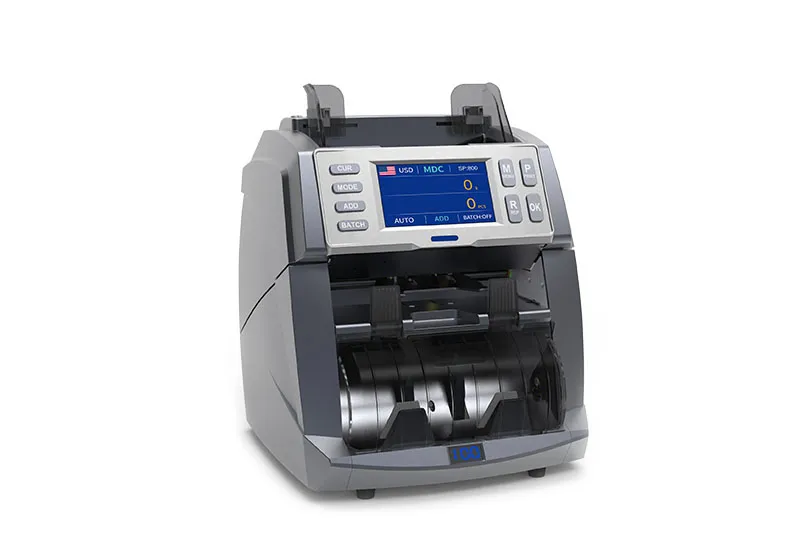

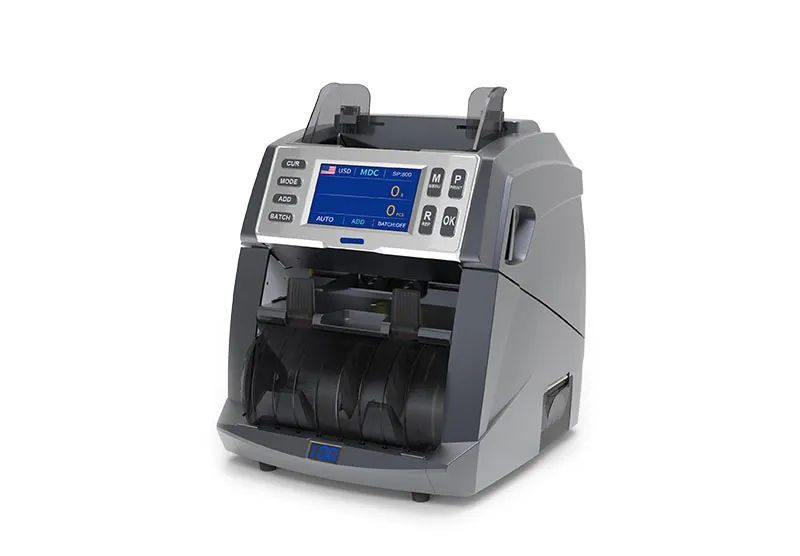

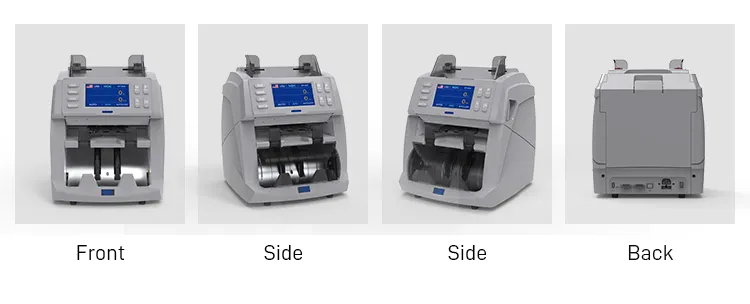

HK6080-PLUS01 is one of the new HK6080 series launched in 2026, equipped with a 5-inch touch screen and a built-in printer for easy operation.
In terms of banknote counting function, it can not only count mixed denominations and intelligently sort, but also realize automatic currency identification and mixed counting of multiple currencies.
Thickness sensor optional.
Built-in printer optional.
Multi-Currency Counting Mode
Supports multi-currency mixed counting, allowing different currencies to be processed together without manual pre-sorting.
Supports 65+ currencies and also provides currency customization.
Automatic Currency Recognition Mode
With automatic currency recognition, the machine identifies the currency of each banknote during processing.
Equipped with dual CIS, UV, IR, MG, MT, Thickness and serial number recognition, delivers bank-grade counterfeit detection and verification.
Banknote Sorting & Fitness Grading
The machine provides comprehensive banknote sorting capabilities, including value sorting, face sorting, orientation sorting, and version sorting.
Supports multiple banknote fitness grading standards to meet different circulation needs.
ATM-grade sorting (ATM) retains only banknotes with 70% fitness or above for ATM loading.
FIT-grade sorting (FIT) retains banknotes with 40% fitness or above for continued circulation.
FIT + OLD sorting (F+O) separates banknotes with 40% fitness or below, facilitating withdrawal and further processing.
Operation Interface & Display
The machine features a 4.3-inch TFT color display, providing a clear and intuitive user interface. Key counting, sorting, and detection information is displayed in real time, improving operational efficiency and ease of use.
Banknote Transport Structure & Maintenance
All the covers can be opened widely, allowing easy access for routine maintenance and quick handling of jammed banknotes.
Printing Functions: The machine supports the printing of counting and sorting records by built-in printer.
Two receipt formats are available, with or without a serial number.
User Account Management: The system allows operators to create individual user accounts within the machine.
When receipts are printed, the name of the currently logged-in user is displayed on the receipt.
Making the device suitable for banking environments where multiple tellers operate the same machine and accountability is required.
Networking & Data Management: Supports network connectivity for uploading the counting and sorting data.
It can also be connected to a PC via LAN cable or Type-C data cable,
-enabling real-time data recording and monitoring through the software.
Blacklist Function: When counterfeit banknotes are detected, their serial numbers can be recorded in a blacklist within the system.
This function enables convenient review, aggregation, and management of counterfeit serial numbers, improving risk control and traceability.
Counterfeit Detection: | 2CIS, MG, IR, UV, MT, Thickness, Serial Number |
Counting Speed: | 800 / 1000 / 1200 notes / min |
Hopper Capacity: | ≤ 500 notes, expandable to 1000 ~ 1200 notes |
Stacker Capacity: | ≤ 200 notes |
Reject Pocket Capacity: | ≤ 100 notes |
Banknote Size: | 60*85*0.08 ~ 100*190*0.12 MM |
Device Dimensions: | 285*285*335 MM |
Device N.Weight: | 12 KGS |
Packing Details: | 380*375*410 MM / 14 KGS |
Power Supply: | AC100 ~ 240V ±10%, 50/60 Hz |
Power Consumption: | ≤ 100 W |
Display: | 5-inch TFT Touch Screen |

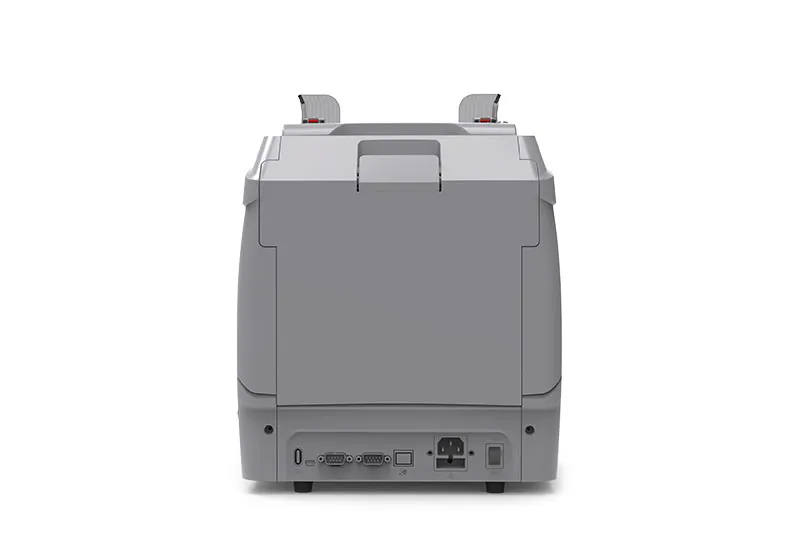

Interface (Port): | USB / LAN / External Display / 2*RS-232 (External Printer) |
